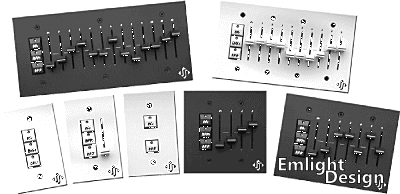

Johnson Systems CS-SA Series Super Analog Stations

The ”Super Analog” series of analog stations have been developed specifically for control of LED fixtures and next generation fluorescent ballasts requiring 0-10vdc analog control for dimming.  And they still are universal for use in new or retrofit applications.  These tough and proven controls will directly replace Strand’s MicroControl line of analog stations.  Available from single to 12 channel with master, preset and take control functions.  These universal stations are commonly supplied for 0-10VDC applications but can be used in applications up to 28VDC making them excellent choices for retrofitted almost any analog station.  Standard finish is black powder coat with while silkscreening or white powder coat with black silkscreening.

• Universal analog control stations for new or retrofit applications.
• Developed specifically for control of LED fixtures and next generation fluorescent ballasts requiring 0-10vdc analog control for dimming.
• Direct replacements for most analog control stations.
• Digitally adjustable fade-times, voltage output and LED brightness.
• Ruggedly built for reliability and longevity.
• Seven models/sizes available including entrance stations.
• Multi-mode operation for remote/entrance station lockout.
• Electronic "take control" for multiple room/station applications.
• Short-circuit and over-current protection.
• Tough, durable powder coat paint on 0.80" aluminum laser cut faceplate for a scratch resistant non-glare finish.
• Color matched and sized for use with Johnson Systems AP Series adapter plates where necessary to adapt to existing (larger) electrical back boxes.
• Metal shaft sliders and machine screw mounting help prevent broken or missing parts.
• Heavy-duty "high tactile" pushbutton switches are rated for 5 million operations.

Priced from $395.00 to $795.00

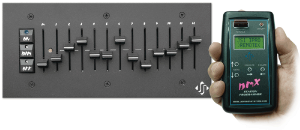

Johnson Systems CS-DMX Series Programmable Manual DMX Control Stations

Multi-Station, multi-room manual DMX controls for a full DMX universe of control! Value, power and complete flexibility in a "green", user friendly, cost-effective package! The DMX Series of controls are the most capable manual "stand-alone" DMX controls available. These field programmable controls support 512 channels of DMX data with digitally adjustable fade times. Multiple stations can be daisy-chained together on the same control wire permitting multiple stations per room. Each station can be individually programmed with our wireless infrared hand-held programmer permitting any slider/channel assignments imaginable.

Available from single to 12 channels with master, preset and take control functions. Two and three button entrance station can be remotely "locked out" for application where access needs to be limited. This series of controls will operate on DC supply voltages up to 18 volts. Adjustable time fade and LED intensity allow customization for demanding applications. Durable powder-coat finish is available in either black or white.

• Manual DMX at your fingertips.

• Six models/sizes available including two and three button entrance stations.

• 512 DMX channels of control per station.

• Multiple stations can be daisy-chained on the same DMX line.

• Digitally adjustable fade-times and LED brightness.

• Station programming via low cost, wireless infrared hand-held remote.

• Energy efficient, each station complies with the I.E.A.'s "One Watt Initiative".

• Local or remote/entrance station lockout options.

• Short-circuit and over-current protection.

• Ruggedly built for reliability and longevity.

• Tough, durable powder coat paint on 0.080" aluminum laser cut faceplate for a scratch resistant non-glare finish.

• Color matched and sized for use with Johnson Systems AP Series adapter plates where necessary to adapt to existing (larger) electrical back boxes.

• Metal shaft sliders and machine screw mounting help prevent broken or missing parts.

• Heavy-duty "high tactile" pushbutton switches are rated for 5 million operations.

• Optional 6 Port Cascading Installation Merger permits low cost DMX universe combining.

Priced from $395.00 to $995.00



Johnson Systems System Management Controls

These retrofit controls are designed specifically for use with the Series 2000 Control Systems and offer the unique ability to save money by using virtually any existing building wiring. Requiring only three wires, these robust digital controls employ rugged high tactile switches and many advanced system features such.

Standard back boxes can be re-used in many circumstances through the use of Johnson Systems color matched adapter plates. Real time system status reporting via several intuitive LED patterns (eg. X pattern when DMX is live). Available in scratch resistant white or black textured powder coat finish. The controls offer a "slick & quick" cost-effective control solution!

Features:

• DMX Snapshot record and playback • Individual fade times per preset up to 99 seconds

• System power management activation • Tour timer

• Automatic DMX lockout • Station lockout



Nine preset, master controller	MSRP $690.00	Emlight $655.00
Portable nine preset controller with 15’ cable	MSRP $850.00	Emlight $805.00
Three preset entrance station	MSRP $620.00	Emlight $585.00
Dry contact interface PCB for building management interface	MSRP $550.00	Emlight $525.00
Signal repeater for data runs exceeding 4000’ or “starred” topology	MSRP $150.00	Emlight $145.00
