JS-ICON™ Series wall-mount dimmer racks represent the ultimate value in hi-performance dimming! Next generation "system-on-a-chip" technology coupled with state-of-the-art inductor technology provides unsurpassed quality in professional grade SCR dimming. Advanced next generation hardware and software designs reduce stand-by power consumption to less than 1 Watt, allowing for compliance with the International Energy Agency's "One Watt Initiative" for standby power consumption. This makes JS-ICON™ Series the "greenest" dimmer racks available! Available in a number of different sizes and configurations, JS-ICON™ Series dimmer racks are designed for side-by-side installation and high density requirements.

Intuitive LCD user interface combined with dual DMX inputs, analog inputs and contact closure inputs allow for industry wide application. Removable cover allows for ease of installation and serviceability. On demand "MagLev®" thermal management technology produces superior cooling that is virtually silent making JS-ICON™ the natural choice for "quiet space" dimming installations. Exclusive "lamp warming" techniques extends lamp life considerably while maintaining industry leading performance!

• Available in multiple sizes and configurations.
• The only "green" dimmer system that complies with the International Energy Agency's 1 Watt Initiative. Unique power saving "stand-by" mode reduces power consumption to less than 1 Watt. Standby power shall not exceed 1 Watt.
• Dims standard or low-voltage incandescent quartz lamps.
• Individual dimmer profile selection permits safe and silent non-dim control of fluorescent loads, HID lighting, motors, etc.
• Dual DMX512-A inputs with on-board protocol manager. Optional wireless DMX receiver.
• Unique "lamp warming" feature extends lamp life. Special proprietary lamp filament warming techniques results in substantially lower (up to 70%) in-rush current resulting in lower peak energy demand requirements and increased lamp life. This feature alone has the ability to dramatically extend lamp life and realize electricity cost savings over the life of the system.
• Analog and dedicated dry contact BMS inputs for interface with HVAC, security and audio.
• "Load Shed" inputs for power management and photocell interface.
• LCD user interface for easy setup and monitoring.
• Over-heat and over-current protected.
• Non proprietary dimmer SCR's are 200% rated and are readily available (stock) items from your local electronic distributors.
• On-demand 'MagLev®' thermal management technology produces superior cooling that is virtually silent with a maximum noise level of 26dBA when the internal heat sink temperature exceeds 75°C.
• Ease of servicing when scheduled maintenance or service is required. Only a single screwdriver is required to replace common service items (such as SSR packs). All components in the assembly can be serviced from the front of the rack.
• Built in status LED's and diagnostics from the keypad and on-board LCD permits ease of troubleshooting. 24/7 technical factory support ensures piece of mind.
• Nominated "Product of the Year" at the Lighting Dimensions International (LDI) tradeshow in Las Vegas, NV, October 2008.





JS-ICON™ 1220
12x20 Amp (2400 Watt) dimmers
Wall Mount Dimmer/Relay Rack

MSRP $2995.00

Emlight price $2800.00





JS-ICON™ 2410
24x10 Amp (1200 Watt) dimmers
Wall Mount Dimmer/Relay Rack

MSRP $3895.00

Emlight price $3650.00





JS-ICON™ 2413
24x13 Amp (1560 Watt) dimmers
Wall Mount Dimmer/Relay Rack

MSRP $3995.00

Emlight price $3750.00





JS-ICON™ 1210/620
12x10 Amp (1200 Watt)
+ 6x20 Amp (2400 Watt) dimmers
Wall Mount Dimmer/Relay Rack

MSRP $3695.00

Emlight price $3495.00

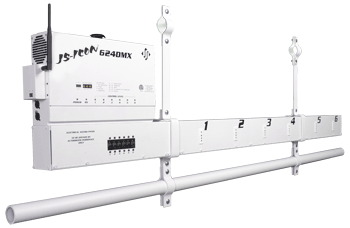

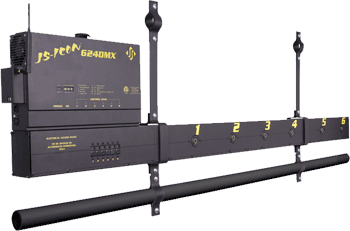

JS-ICON™ Series dimmers deliver the ultimate value in hi-performance distributed dimming. Designed to set a new standard, the rugged and simple design is ideal for use in applications where conventional "centralized dimmers" are not appropriate or cost prohibitive. Simple to install and operate, these dimmers can significantly lower electrical installation costs. A dedicated "contractor section" with a choice of terminal strip or magnetic breakers. Large wire capacity input permits feeder power up to 60 Amps at 120/240 Volt single phase or 40 Amps at 120/208 Volt three phase. Designed for ease of installation and service with removable front panels and hinged control section access, future "installed location" servicing of high voltage receptacles or electronic controls is fast and easy. Large hi-performance chokes and "MagLev®" thermal management technology produces superior cooling that is virtually silent. All electronics are easily and remotely monitored with intuitive status LED's. High-resolution (16 bit) fade standard. Wireless DMX 512 receiver optional.

• Six 2400 Watt dimmers in a package weighing approximately 45 lbs. (20.5 Kg).
• Dims standard or low-voltage incandescent quartz lamps.
• Superior 16-bit fade resolution provides unmatched performance.
• Both DMX 512 and individual analog inputs. Optional wireless DMX receiver.
• Available in terminal block or magnetic breaker.
• Over-heat and over-current protected.
• Dimmer SCR's are 200% rated.
• "MagLev®" thermal management technology produces superior cooling that is virtually silent.
• Status LED's allow easy remote setup and troubleshooting.
• Separate high voltage "contractor termination section".
• Standard 78" (198.1 cm) length with optional "two-fered" 57" (144.8 cm) extension.
• Removable/serviceable connector panels.

Characteristics

• Power Requirements: 120/208 VAC 3Ø 4 wire up to 40A. Max. rating 14.4kW. or 120/240 VAC 1Ø 3 wire up to 60A. Max. rating 14.4kW or six individual 120VAC 1Ø 3 wire circuits up to 20A each.
• Power Termination: Terminal block with optional 6 x 20A magnetic breaker protection.
• Environment: Temperature Range: 23°F (-5° C) to 113°F (45°C) ambient. Humidity Range: 0% to 90% non-condensing.
• Dimmer Capacity and Load Type: 6 x 2.4kW incandescent quartz lamps and electronic (SCR dimmable) low voltage fixtures.
• Switch Type: 200% rated, non-proprietory SCR solid state relay.
• Rise Time: 300μs fully epoxy-encapsulated chokes are made from ultra low audible noise core material.
• Physical: Strip: 3.5" x 4.85" x 78" (8.9 cm x 12.3 cm x 198.1 cm).
  135" (342.0 cm) with optional extension.
  Control box: 3.5" x 10" x 16" (8.9 cm x 25.4 cm x 40.6 cm)..
• Weight: Approximately 45 lbs. (20.5 kg)
• Material: 0.125" extruded aluminum (strip) / 18-gauge steel (control box)
• Finish: Textured black or white powdercoat.

JS-ICON™ Terminal Block (TB) versions

JS-ICON 624 DMX-TB 6x2.4kW dimmers c/w TLG (L520R) outputs  MSRP $2350.00  Emlight price $2230.00
JS-ICON 624 DMX-TB 6x2.4kW dimmers c/w Edison (U-Ground) outputs  MSRP $2350.00  Emlight price $2230.00
JS-ICON 624 DMX-TB 6x2.4kW dimmers c/w Bates (Stage Pin) outputs  MSRP $2350.00  Emlight price $2230.00
JS-ICON 624 DMX-TB 6x2.4kW dimmers c/w Pigtail outputs  MSRP $2350.00  Emlight price $2230.00

JS-ICON™ Magnetic Breaker (MB) versions

JS-ICON 624 DMX-MB 6x2.4kW dimmers c/w TLG (L520R) outputs  MSRP $2600.00  Emlight price $2450.00
JS-ICON 624 DMX-MB 6x2.4kW dimmers c/w Edison (U-Ground outputs  MSRP $2600.00  Emlight price $2450.00
JS-ICON 624 DMX-MB 6x2.4kW dimmers c/w Bates (Stage Pin) outputs  MSRP $2600.00  Emlight price $2450.00
JS-ICON 624 DMX-MB 6x2.4kW dimmers c/w Pigtails outputs  MSRP $2600.00  Emlight price $2450.00

JS-ICON™ portable dimmers deliver the ultimate value in high performance portable dimming. Designed to set a new standard, this rugged design is ideal for use in applications where multiple location dimming is required. Large input wire capacity permits feeder power up to 60 Amps at 120/240 Volt single phase or 40 Amps at 120/208 Volt three phase! Designed for ease of installation and service with removable top panel for control section access. Future servicing of high voltage receptacles or electronic controls is fast and easy. Large high performance chokes and "MagLev®" thermal management technology produces superior cooling that is virtually silent. All electronics are easily monitored with intuitive status LED's. Optional wireless DMX 512 receiver and a high-resolution (16 bit) fade make this dimmer a star performer in the portable category!

• Six 2400 Watt dimmers in a robust portable high density package.
• Compact stackable design permits system expansion as necessary.
• Dims standard or low-voltage incandescent quartz lamps.
• Superior 16-bit fade resolution provides unmatched performance.
• Optional wireless DMX receiver eliminates control wiring.
• Integral spring retracted, low profile carrying handle for ease of portability.
• Magnetic breakers for maximum circuit protection.
• Over-heat and over-current protected. Dimmer SCR's are 200% rated.
• "MagLev®" thermal management technology produces superior cooling that is virtually silent.
• Status LED's allow easy remote setup and troubleshooting.
• Optional 19" rack mount ears available.
• Outputs available with
